Vaniman Industrial Product

Master Problast 3 ESD – 80056

$2,795.00

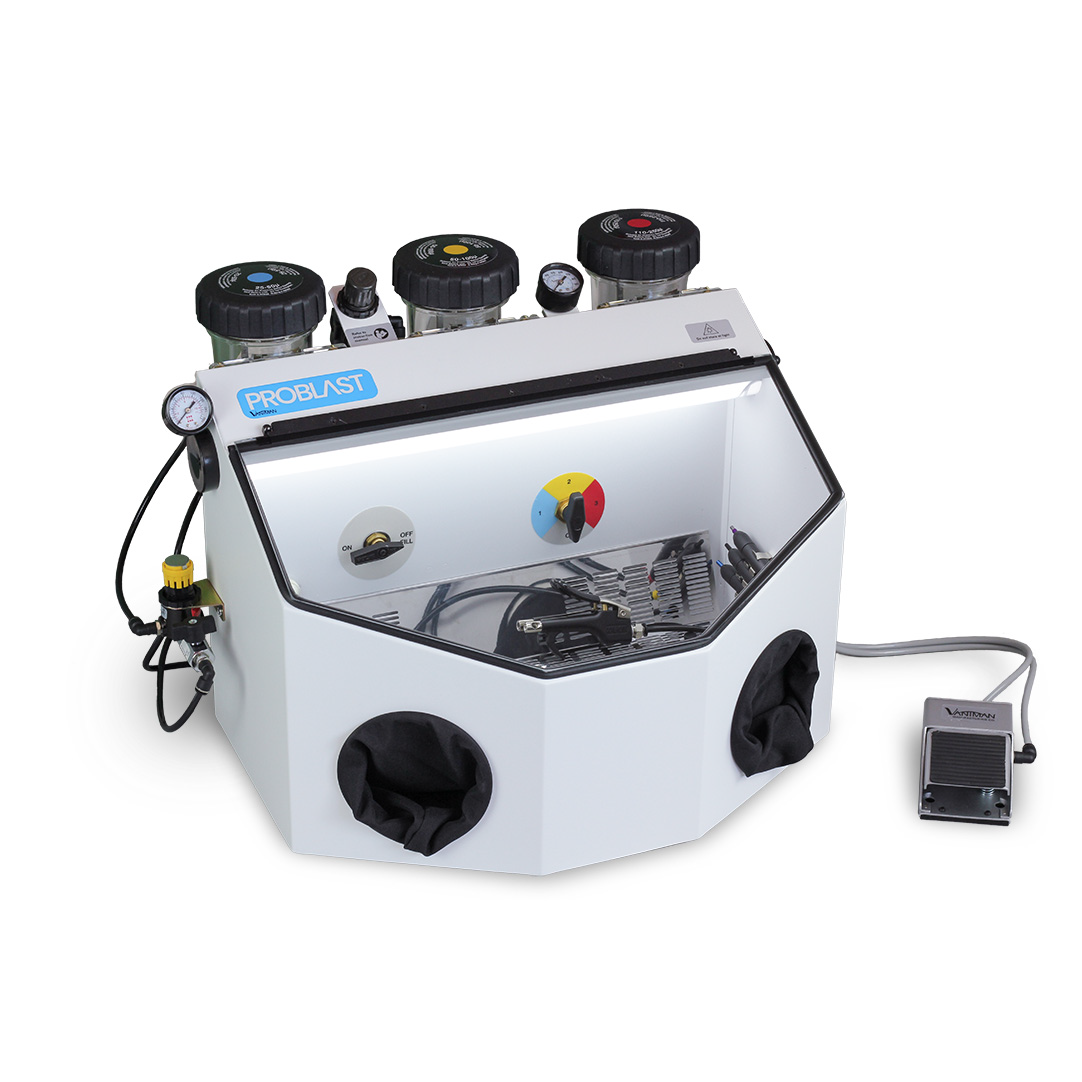

The Vaniman Master Problast 3 ESD is a durable micro sandblaster with an ionized air flow that creates a continuously conductive, ESD-resistant environment. This model features a fully grounded cabinet and work surface for a complete user and part grounding system. This unit requires dust collection and compressed air for operation. Assembled in the USA, this blaster is versatile in many different industries. It is the ideal solution for applications that require:

  • Metal finishing
  • De-burring
  • Removal of conformal coatings from IC and boards with silicone, parylene, and epoxies
  • Surface texturing
  • Cleaning oxidized processes or materials
  • Marking of parts and tools

…and many more.

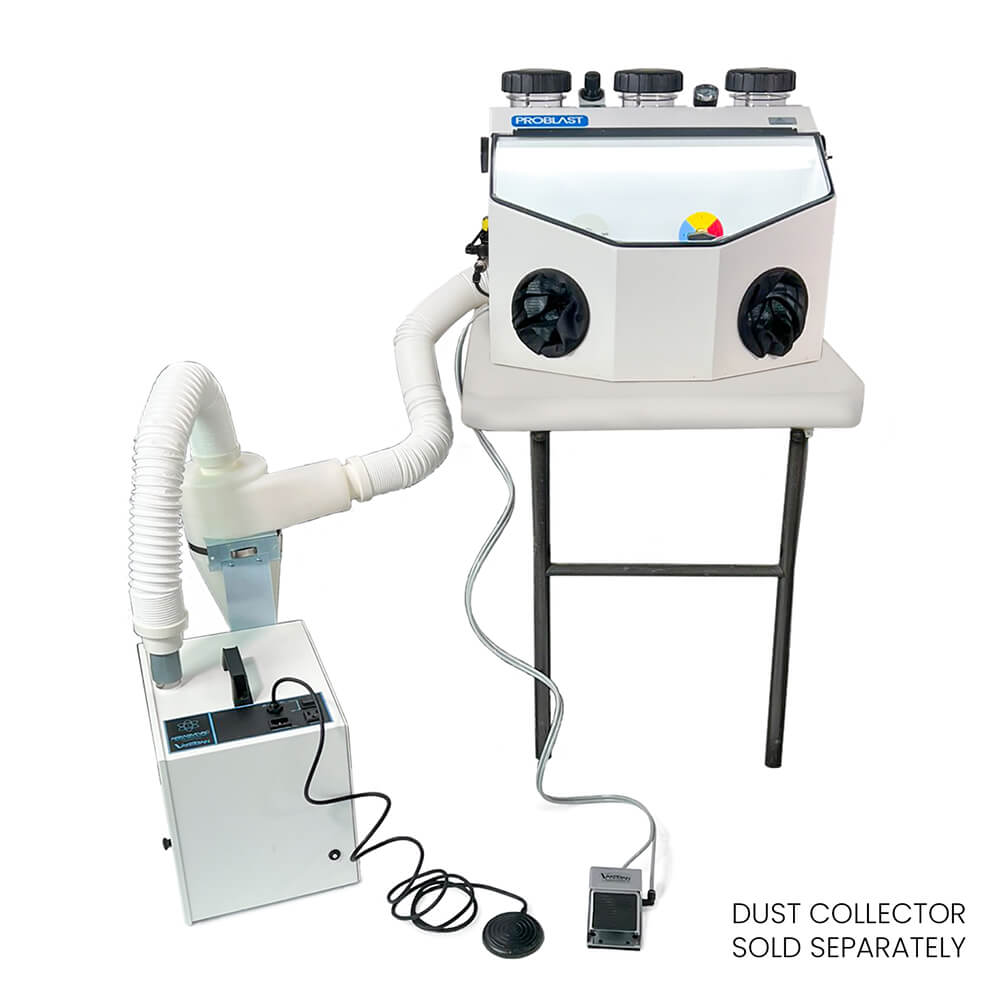

Dust collector required; recommended unit: Vaniman Abrasive Vac.

Description

Free Conformal Coating Removal Quick-Reference Guide:


Compressed air requirements: minimum 90 PSI at 1.5 CFM (recommended 2.5 CFM).

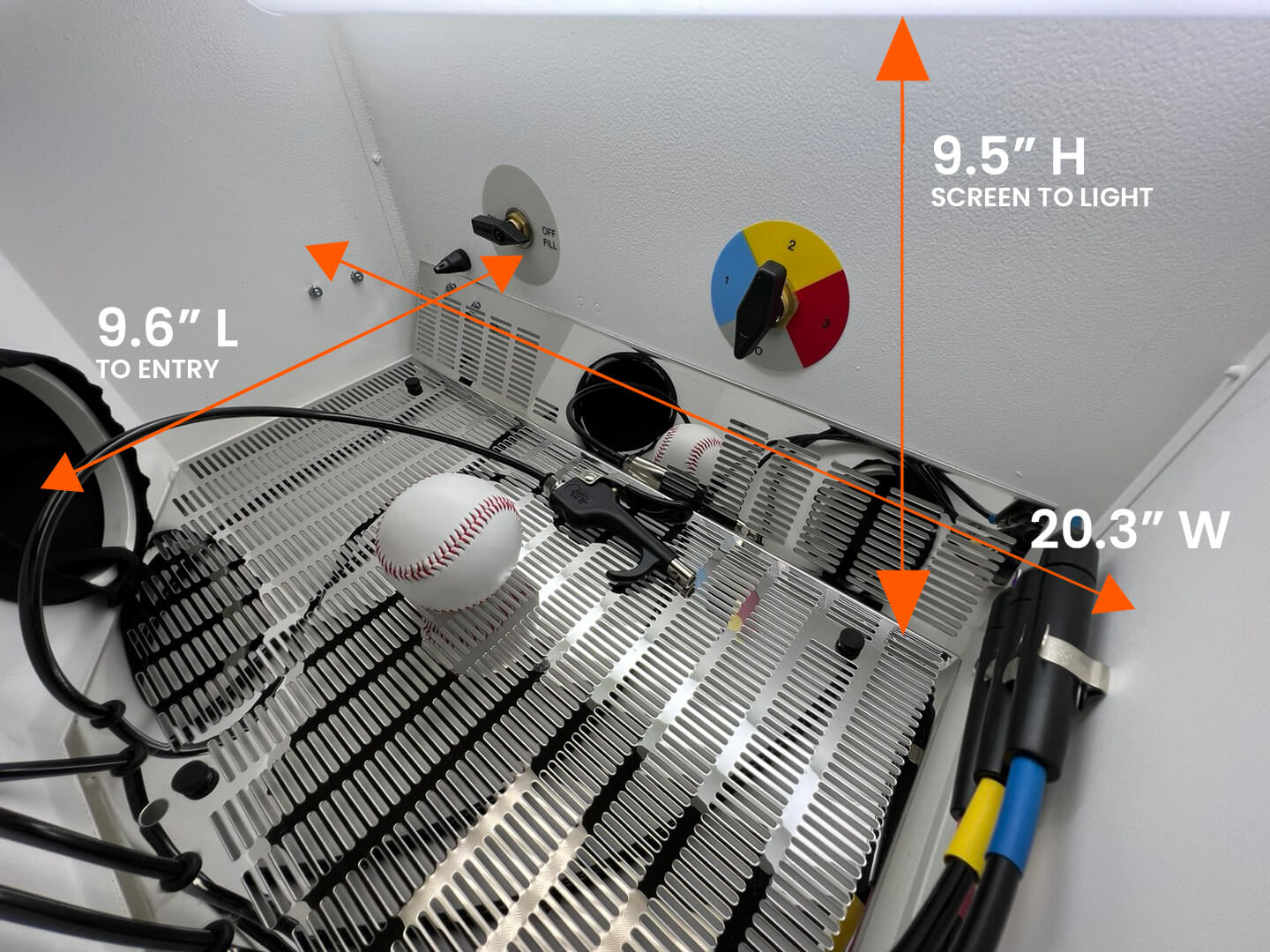

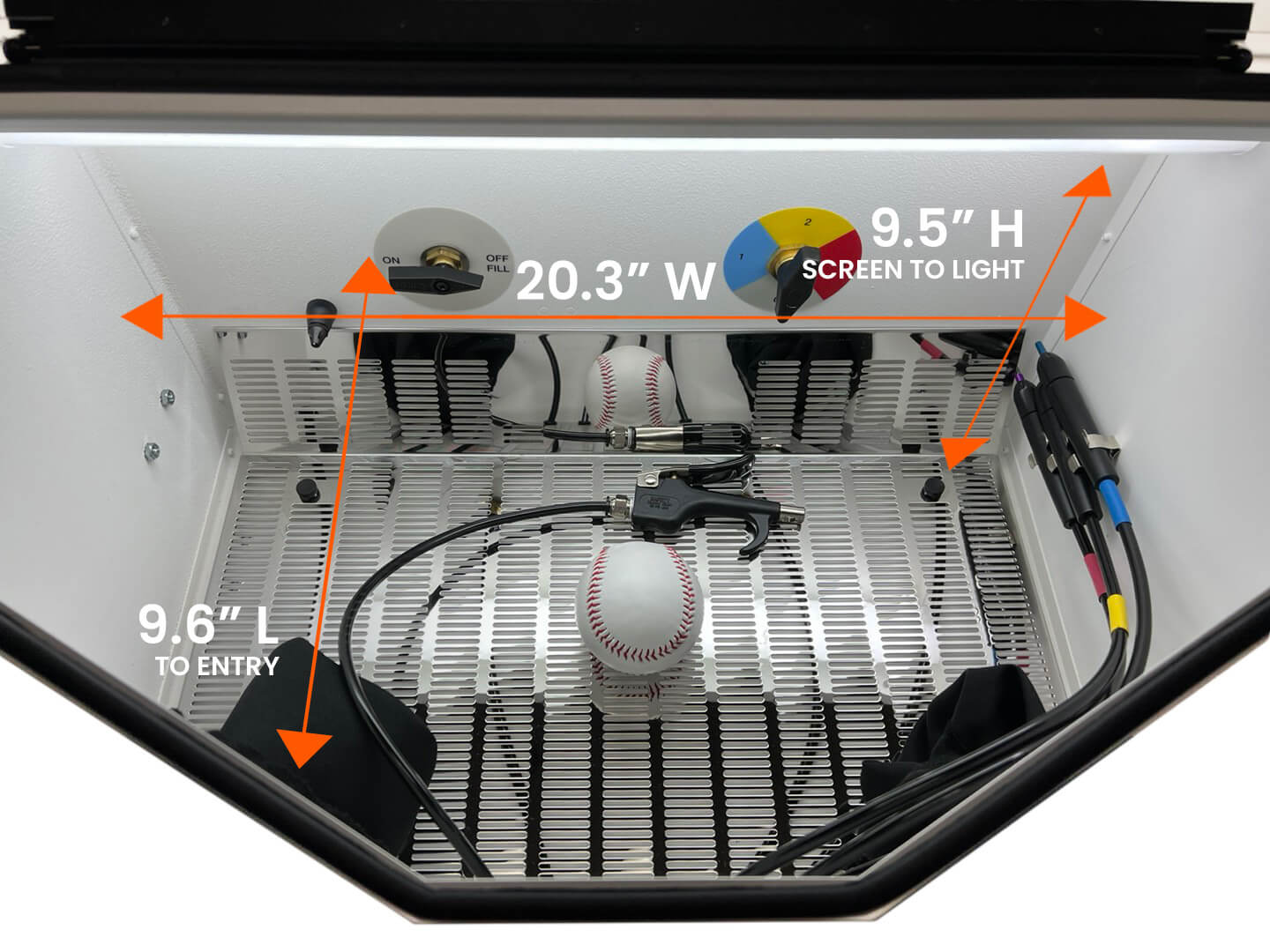

INTERNAL DIMENSIONS: 20.3″ wide x 9.6″ deep (back wall to hand entry) x 9.5″ high (screen to light)

Product features:

  • Instant-Off feature immediately starts and stops media flow to avoid nozzle bleed off
    • (Standard units have a small pressure bleed-off through the nozzle upon pedal-release)
  • Suitable for any application where ESD (Electro-Static Discharge) is an issue
  • Fully grounded cabinet and work surface for a complete user and part grounding system
  • Adjustable compressed air ionizer floods cabinet with neutralizing ion flow for a continuously conductive environment

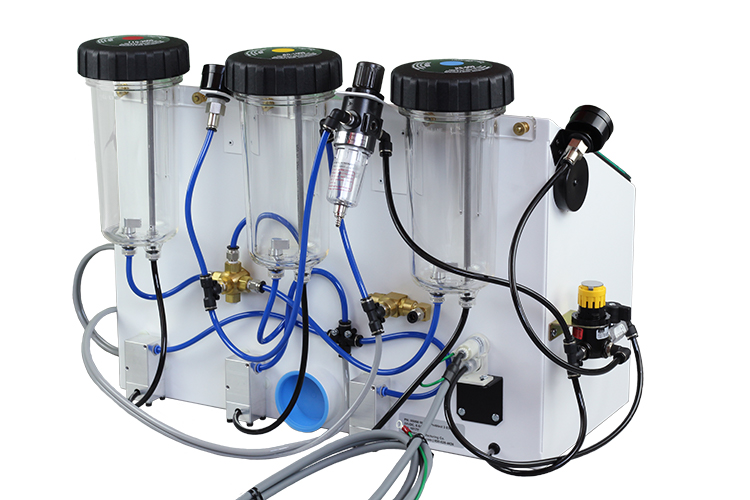

  • Built-in pressure delivery system including a 0-100psi adjustable filter regulator and foot pedal control

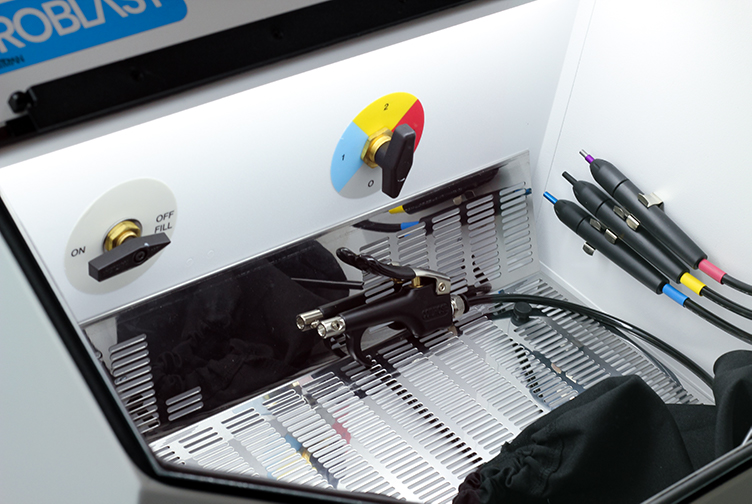

  • On/off and tank selector controls located inside the cabinet
  • Large, well-lit work area
  • Handles all types of blasting media from 60 to 360 grit (25-250 micron)
  • Labor saving Easy Fill tanks hold up to 4 pounds of media
  • Tungsten carbide precision tips and Sapphire crystal tips
  • 1 Year Warranty

Available with any three tank/tip combinations, specify alternate tanks when ordering

Includes one of each media tank, sizes: 25 micron, 50-100 micron, 110-250 micron
P/N 80056

Please contact Vaniman at (760) 723-1498 at time of ordering to discuss tank size combination options.

*Note* This units requires dust collection

Diagrams & Instructions:

FAQ: Air Supply Connections for Blasters (blog).

FAQ: What’s the Difference Between Our “Master” or Instant-Off (I/O) Sandblasters and the Standard Kind?

Optional Accessories:

Replacement Parts:

Additional information

Weight 50 lbs
Dimensions 25 × 28 × 21 in
