Problast InstructionsDescription
What’s Included
- Problast unit
- Media tanks (2)
- Quick disconnect regulator
- Hoses
- Foot pedal
- Hand piece
- Window protector sheet
- Tungsten carbide tip
- Sapphire crystal tip
- 50 micron media sample pack (glass bead and aluminum oxide)
Compressed air requirements: minimum 90 PSI at 1.5 CFM (recommended 2.5 CFM).
FAQ: Air Supply Connections for Blasters (blog).

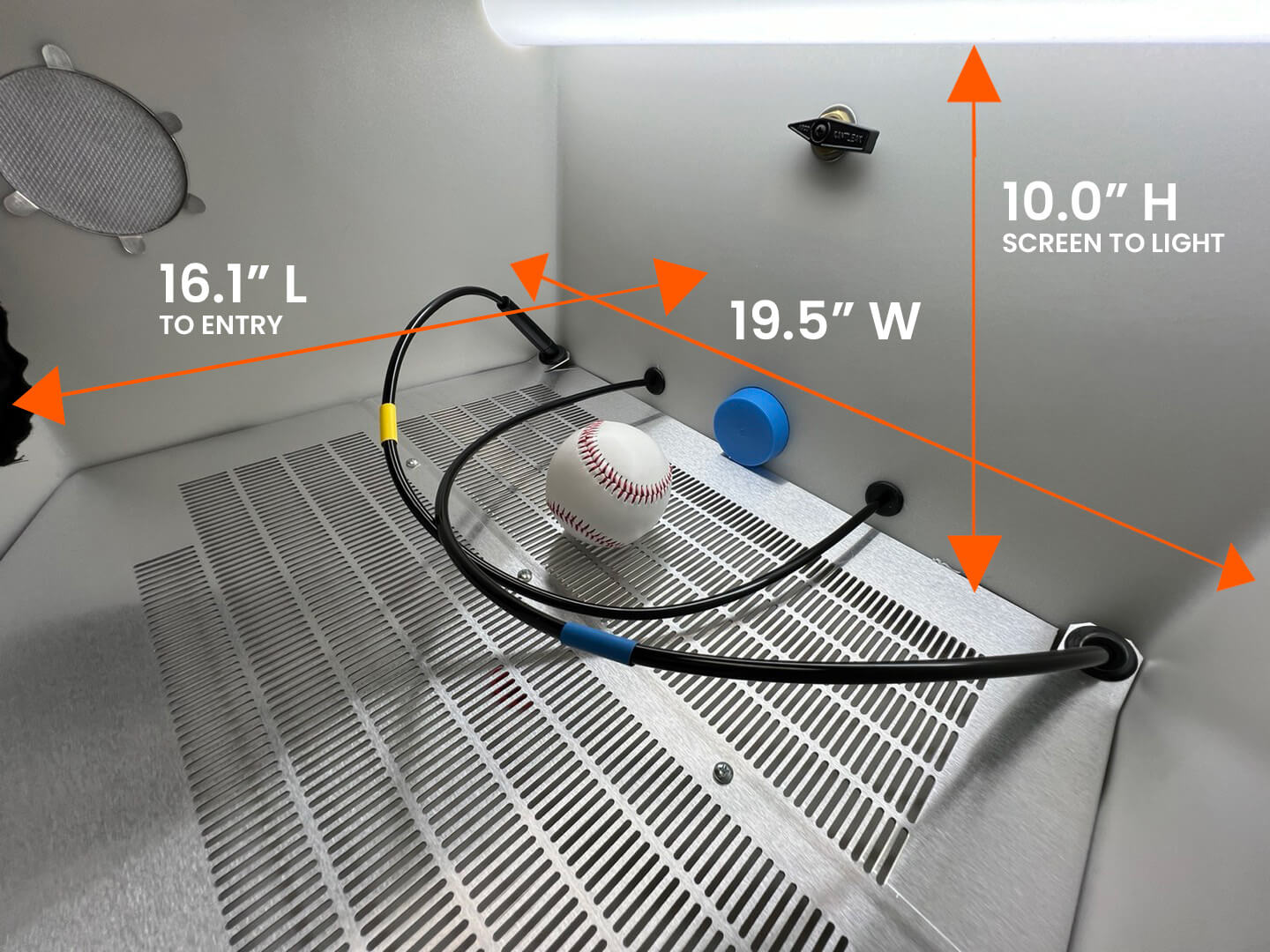

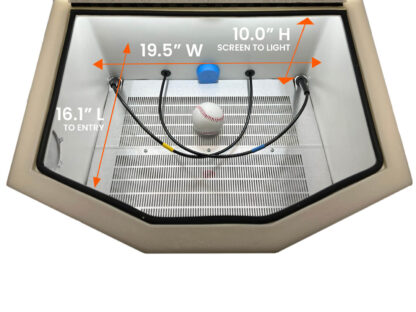

INTERNAL DIMENSIONS: 19.5″ wide x 16.1″ deep (back wall to hand entry) x 10.0″ high (screen to light)
Optional Accessories:
- Sodium Bicarbonate 50 -100 micron – 15lb. (P/N: 97934)
- Glass Bead 50 micron – 15lb. (P/N: 97925)
- Aluminum Oxide 250 micron (60 grit) – Coarse 15 lb. (P/N: 97924)
- Aluminum Oxide 100 micron (120 grit) – Medium 15lb. (P/N: 97923)
- Aluminum Oxide 50 micron (220 grit) – Fine 15lb. (P/N: 97922)
- Aluminum Oxide 25 micron (350 grit) – Super fine 15lb. (P/N: 97921)
- Embedded Crystal Tip Medium Blue .032, (.8mm) (25/50 micron) (P/N: 97902)
- Embedded Crystal Tip Large Black .048″ (1.2mm) (50/100/250 micron) 2/pk. (P/N: 97903)
- Embedded Crystal Tip Extra Large .065″, (1.6mm), (100/250 micron) 2/pk. (P/N: 97904)
- Precision Carbide Tip Small Yellow .026″(.65mm), (25/50 micron) (P/N: 97905)
- Precision Carbide Tip Medium Green .036″, (.91mm)(50/100 micron) (P/N: 97906)
- Precision Carbide Tip Large Violet .059″, (1.5mm)(100/ 150 micron) (P/N: 97907)
- Angled Tip Adapter (P/N: 97908)
- Precision Carbide Right Angle Tip Small .026″(.65mm), (25/50 micron) (P/N: 97987)
- Precision Carbide Right Angle Tip Medium .036″, (.91mm)(50/100 micron) (P/N: 97988)
- Precision Carbide Right Angle Tip Large .059″, (1.5mm)(100/ 150 micron) (P/N: 97989)
- Perfect View Magnifier (P/N: 97955)
- Blaster Static Cling Protector – Large Blasters 12/pk (P/N: 97951)
Replacement Parts:
- Spray Jet Handle Assembly (P/N: 97949)
- Urethane Tubing (P/N: 97929)
- Grommet for Hose (2 pkg.) (P/N: 2005A)
- Window Assembly, Complete (P/N: 2620)
- Window Only (P/N: 2606A)
- Window Gasket Kit (P/N: 2030B)
- Floor Screen (P/N: 2604)
- Cuff (P/N: 2033XL)
- Cuff Holder XL (P/N: 2260)
- Light Tube Only (P/N: 2073B)
- Replacement Light Bulb (P/N: 2078)
- Replacement LED Light Assembly
- Foot Pedal Assembly (P/N: 2101)
- Air Pressure Gauge Only (P/N: 2112)
- Air Filter Regulator Only (P/N: 2024)
- Air Filter Regulator Assembly (P/N: 2047)
- O-ring, lid seal (P/N: 2256)
- Sealing O-Ring for Handle (P/N: 97909)
- Sand Tank 25 micron Complete (P/N: 97956)
- Sand Tank 50-100 micron Complete(P/N: 97957)
- Sand Tank 250 micron Complete (P/N: 97958)
Discontinued Model Parts:
- Sand Tank Selector Valve Assembly(P/N: 2046)
- Sand Tank 250 Micron (P/N: 2130A)
- Sand Tank Complete (25/100 Micron) (P/N: 2207)
- Sand Tank Complete (250 Micron)(P/N: 2208) CALL
- Manifold Tube (25/100 Micron) (P/N: 2139A)
- Manifold Tube (250 Micron)(P/N: 2139B)
- Inlet Tube (P/N: 2139C)
- Sand Tank Only (P/N: 2145A)
- Filter for Manifold (P/N: 2159)
- Braided Nylon Hose (P/N: 2169)
- Sand Tank Conversion Kit (P/N: 97910)
- Sand Tank Conversion Kit (250 Micron)(P/N: 97911)
- Sand Tank Cover Kit (P/N: 97913)
- Sand Tank Filler Cap w/Gasket (P/N: 97914)
- Sand Tank Bottom Hose Coversion Kit (P/N: 97915)
- Filter/Dryer (3 Pack) (P/N: 97946)
- Sand Tank Bottom Hose Conversion Kit (P/N: 97953)
Assembled in USA
